側燈/Side Turn Lamp

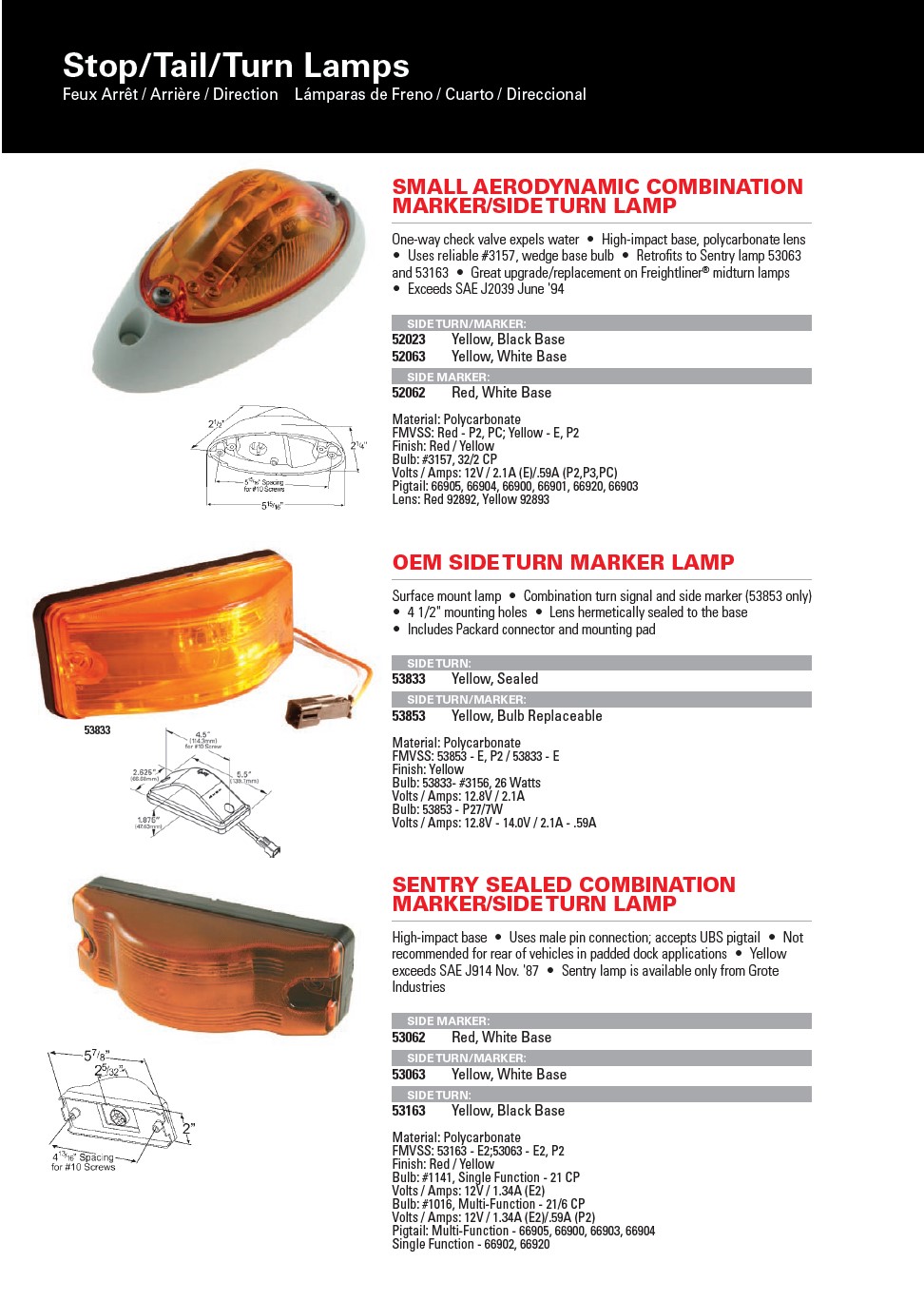

側燈SIDE TURN/MARKER:
52023 Yellow, Black Base
52063 Yellow, White Base
SIDE MARKER:
52062 Red, White Base
Material: Polycarbonate
FMVSS: Red - P2, PC; Yellow - E, P2
Finish: Red / Yellow
Bulb: #3157, 32/2 CP
Volts / Amps: 12V / 2.1A (E)/.59A (P2,P3,PC)
Pigtail: 66905, 66904, 66900, 66901, 66920, 66903
Lens: Red 92892, Yellow 92893
OEM Side Turn Marker Lamp
Surface mount lamp ? Combination turn signal and side marker (53853 only)
? 4 1/2" mounting holes ? Lens hermetically sealed to the base
? Includes Packard connector and mounting pad
SIDE TURN:
53833 Yellow, Sealed
SIDE TURN/MARKER:
53853 Yellow, Bulb Replaceable
Material: Polycarbonate
FMVSS: 53853 - E, P2 / 53833 - E
Finish: Yellow
Bulb: 53833- #3156, 26 Watts
Volts / Amps: 12.8V / 2.1A
Bulb: 53853 - P27/7W
Volts / Amps: 12.8V - 14.0V / 2.1A - .59A
Sentry Sealed Combination
Marker/Side Turn Lamp
High-impact base ? Uses male pin connection; accepts UBS pigtail ? Not
recommended for rear of vehicles in padded dock applications ? Yellow
exceeds SAE J914 Nov. '87 ? Sentry lamp is available only from Grote
Industries
SIDE MARKER:
53062 Red, White Base
SIDE TURN/MARKER:
53063 Yellow, White Base
SIDE TURN:
53163 Yellow, Black Base
Material: Polycarbonate
FMVSS: 53163 - E2;53063 - E2, P2
Finish: Red / Yellow
Bulb: #1141, Single Function - 21 CP
Volts / Amps: 12V / 1.34A (E2)
Bulb: #1016, Multi-Function - 21/6 CP
Volts / Amps: 12V / 1.34A (E2)/.59A (P2)
Pigtail: Multi-Function - 66905, 66900, 66903, 66904

Single Function - 66902, 66920
